4" Production Visual Control Board - PC12003
Zoom Print บอกต่อเพื่อน

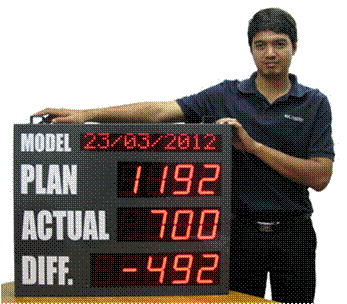

4" Production Visual Control Board - PC12003

Production Visual Control Board LED Display ขนาดใหญ่ ความสูง LED 4" , Red Color และ Dotmatrix ใช้บันทึก และ แสดงค่า Model, Plan, Actual, DIFF, Efficiency, Clock, Date, Time, Downtime, Cycle time
Product code : PC12003
Weight : 6000 g.
Stock : Ready to ship

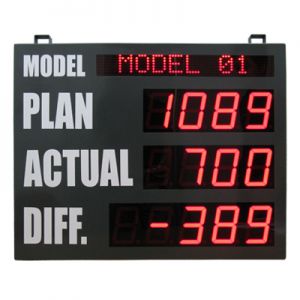

4" Production Visual Control Board - PC12003

Production Visual Control Board LED Display ขนาดใหญ่ ความสูง LED 4" , Red Color  และ Dotmatrix ใช้บันทึก และ แสดงค่า Model, Plan, Actual, DIFF, Efficiency, Clock, Date, Time, Downtime, Cycle time


Product Descriptions

Production Visual Control Board LED Display ความสูง LED 4" , Red Color แสดงจำนวนงานที่ผลิตได้ ณ.ปัจจุบัน(Actual) ซึ่งจะทำให้พนักงาน และ ผู้ควบคุมการผลิต ทราบว่าแผนงาน ที่ต้องผลิตตอนนี้มีจำนวนเท่าไหร่, ผลิตไปถึงไหนแล้ว สามารถช่วยเพิ่มผลผลิต และ ติดตามความคืบหน้าในการผลิตได้เป็นอย่างดี นอกจากนี้ที่ช่อง Dotmatrix ยังสามารถแสดงค่า Model, Efficiency, Clock, Date, Downtime, Cycle time โดยใช้ฟังก์ชั่นการแสดงสลับ การใช้งานง่ายเพียงต่อไฟ 220VAC. เข้าที่ตัว Board และ ใช้ Keypad ป้อนค่าหรือ Set ค่าที่ต้องการ ค่า Actual รับค่าจาก Switch ปุ่มกด, หรือ จาก Photo Sensor ที่ต่อใน line ผลิตได้ และยังมี Output Relay เพื่อนำไปต่อ Tower Light หรือ เสียงเตือนได้

Product Features

• Highly Visible 4" LED Display Red Color  LED Dot 5mm. Red Color

• Inform, alert and motivate employees!

• Simple to install, easy to understand and fast to show results.

• รับค่า Actual จาก Contact input (input by a relay or switch contact) or "High"24V  "Low"0V

• Automatic Run, Breake time, Cycle time, Reset.

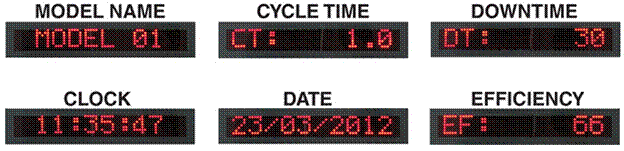

• แสดง Model ที่กำลังผลิต, จำนวนที่ผลิต(Actual), Cycle Time, Downtime, Clock, Date, Efficiency

• สามารถ Modify เพิ่มให้เหมาะสมตามความต้องการของลูกค้าได้

• Factory Service One-Year Parts & Labor รับประกันสินค้า 1 ปี ฟรีอะไหล่ และ ทีมช่างให้บริการ


Custom Features

• ใช้งานร่วมกับ Software สามารถ Real-time monitoring ผลการผลิต ทุก line พร้อมกันผ่านหน้าจอเดียว

• สามารถเก็บ Data Record ผลการผลิต แบบละเอียด ลง Computer เรียกดูย้อนหลังได้ Export Excel ได้

• สามารถส่งค่ามาแสดงผลด้วย ASCII protocol กรณีลูกค้ามีค่าต่างๆ อยู่แล้ว ส่งจาก PLC, PC, Server

• สามารถเชื่อมต่อแบบ RS485 หรือ TCP/IP ได้

Tag : Production Display, Production Scoreboard, Production Real-time Monitoring system, Production Andon system, Production improvement tool , Serial Communication - RS232 / RS485 / TCP/IP,



Applications



Display

LED Display



No.

Variable

Digit

Digit Height (inch)

Color

Description

1

Model No.

10 Cha.

LED Dot 3mm.

Red

แสดง Model No. เป็นตัวเลขหรืออักษร ได้ 10 Character สูง 2.3 นิ้ว, LED สีแดง

2

Plan

4

4"

Red

แสดงค่า Plan ตัวเลข 4 Digit, สูง 4 นิ้ว LED สีแดง

3

Actual

4

4"

Red

แสดงค่า Actual ตัวเลข 4 Digit, สูง 4 นิ้ว LED สีแดง

4

Diff.

5

4"

Red

แสดงค่า Diff. ตัวเลข 5 Digit, สูง 4 นิ้ว LED สีแดง

ใช้ติดตั้งใน Production Line, Assembly Line, Workstation  โดยสามารถป้อน Break Time หรือ Reset time กรณีต้องการให้ Board ทำการ Reset ค่า Actual ที่ได้ของแต่ละ Shift

เมื่อเข้าสู่ช่วงการผลิต Boardจะแสดงชื่อชิ้นงานที่กำลังผลิต(Model) และเมื่อทำเสร็จ 1 ชิ้นก็ทำการ Input ค่า Actual หรือ ชิ้นงานที่ผลิตแล้วเสร็จ และชิ้นงานที่เสีย(Defect) เข้ามาที่ตัว Board โดยการกด Push Button, จาก Sensor หรือ จาก Contact on/off ของ เครื่องจักร หรือ PLC

Board สามารถใช้งานได้ทั้งแบบ Stand Alone หรือใช้เป็นระบบ Software ควบคุม(Custom Feature) กรณีใช้ Software ควบคุมมีข้อดี ในความสามารถ จัดการ Board ได้หลายตัวพร้อม, Real-time Monitoring, เก็บ Record ที่เกิดขึ้น เพื่อใช้เป็นข้อมูลในการปรับปรุงการผลิตต่อไป



General Applications

General Applications

Where To Install?

Who To Use ?

Display Production Data

Production Floor

Manager

Display Plan,Targets for Shifts / Day

Production Line

Supervisor

Display Target/Goal Status

Conveyor Belt Production Line

Production Engineer

Motivate Employees

Assembly Line / Workstation

Industrial Engineer

Enhancing communication

Production Office

Operators, Employee

Improve manufacturing productivity

Warehouse

Visitors, Inspector



Technical Specifications





LED Display

No.

Display Variable

Digit

Digit Height (inch)

Color

2

Model No.

10 Cha.

2.3"

Red

3

Plan

4

4"

Red

4

Actual

4

4"

Red

5

Diff.

5

4"

Red

Viewing Distance

48 m. (Recommended/ Maximum)

Edit/Setting

Board จะดึงค่าต่างๆในแต่ละ Field จาก Database ตัวกลางขึ้นมาแสดง ตามข้อมูลที่ป้อนไว้

Electrical Specifications

Power Source:

110-220 Volts AC / 50 Hz.

Power Consumption:

65 Watts

Current Draw:

0.5 - 0.9 Amp

Physical Specifications

Indoor / Outdoor:

Indoor

Dimensions:

Width 1300 x Height 356 x Depth 80 mm.

Weight:

6 kg.

LED / Acrylic Face Color:

Red(Standard)

Enclosure Material:

Metal or Acrylic

Enclosure Color:

Black or Gray Color

Mounting Method:

Hang Mount / Ceiling Mount /  Wall Mount

Communications

RS485 Two Wire Multidrop

Ethernet TCP/IP, LAN



System Diagram

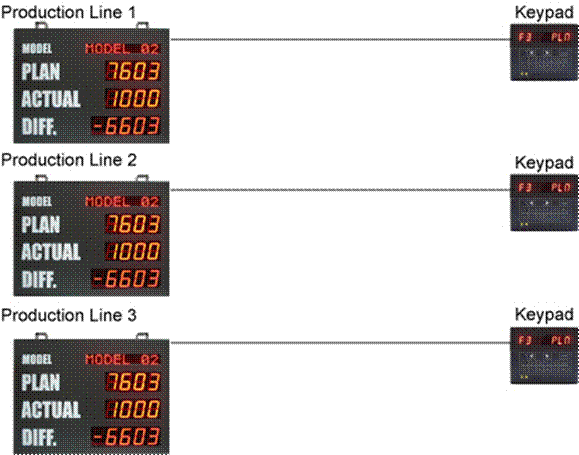

การเชื่อมต่อ Board Display Stand Alone Solution โดยตั้งค่าการใช้งานโดยใช้ Keypad



system-diagram-stand-alone

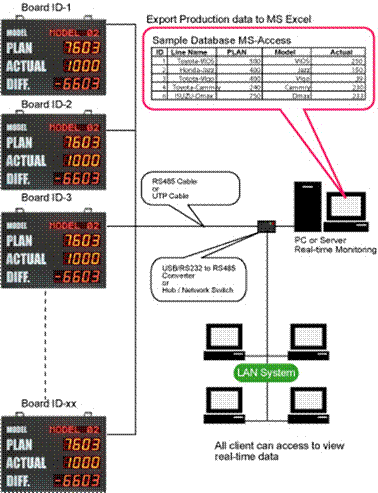

การเชื่อมต่อ Board Display แบบใช้ Software ควบคุม(Custom Features) - ควบคุม Board และ Real time monitoring ผ่าน Computer



system-diagram-network
